(8.7m x 8.0m) Two-Storey Residential House Complete Set of Plans

Description

Architectural • Structural • Plumbing • Electrical
📄 Digital Download

This 8.7m x 8.0m Two-Storey Residential House Complete Set of Plans is a space-efficient and practical design, ideal for urban and suburban lots. Designed to maximize floor area while maintaining functionality, comfort, and cost efficiency, this plan is perfect for small to mid-size families.

🔹 Room Breakdown

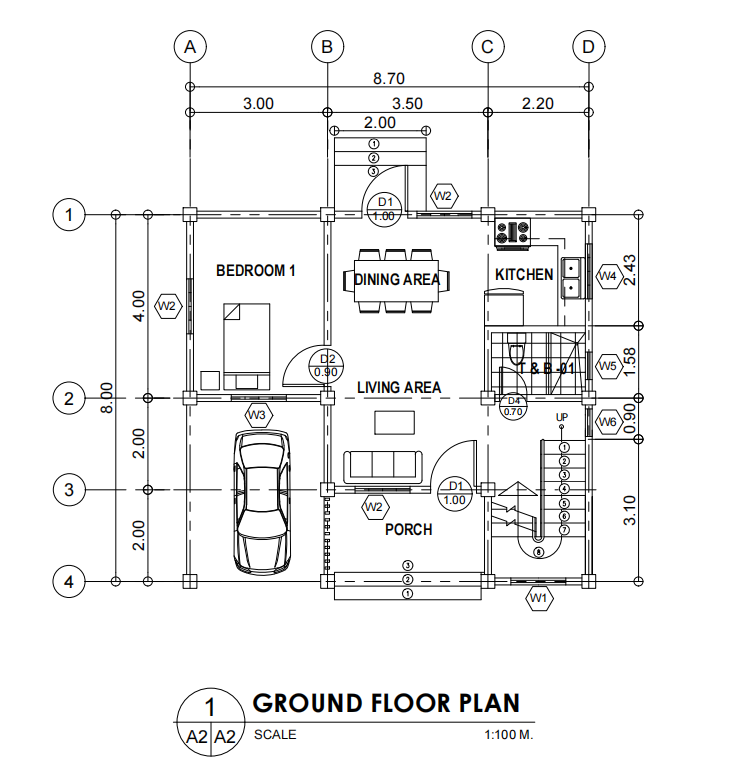

🟢 Ground Floor

• Living Area – Spacious and welcoming, suitable for family use and guests

• Dining Area – Centrally located for efficient movement

• Kitchen – Functional layout with proper work flow

• Common Toilet & Bath – Convenient access for guests and daily use

• Stair Area – Well-positioned for smooth circulation

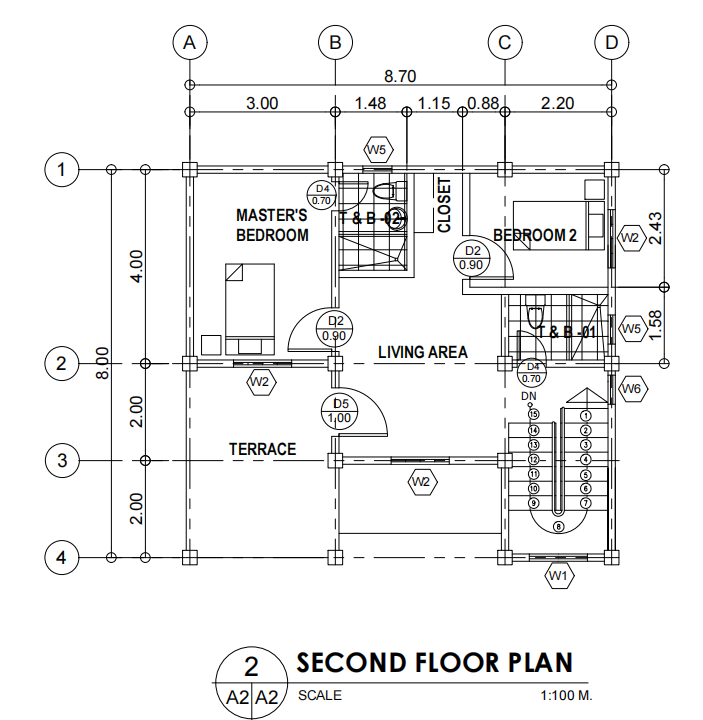

🟢 Second Floor

• Master Bedroom – Comfortable space for the homeowners

• Bedroom 2 – Ideal for children or guests

• Bedroom 3 – Can be used as bedroom, study, or home office

• Common Toilet & Bath – Accessible to all bedrooms

• Hallway / Landing Area – Provides proper circulation and privacy

🔹 Key Features:

• Lot Footprint: 8.7 meters x 8.0 meters

• Building Type: Two-Storey Residential

• 3 Bedrooms

• 2 Toilet & Bath

• Efficient space planning for residential use

• Good natural lighting and ventilation

• Cost-efficient layout, ideal for budget-controlled construction

🔹 Ideal For:

• Homeowners planning a two-storey residential house

• Contractors and builders needing a ready reference plan

• Engineers and estimators preparing quantity take-off and cost estimates

• Residential projects with limited lot area

🔹 Digital Product Inclusions:

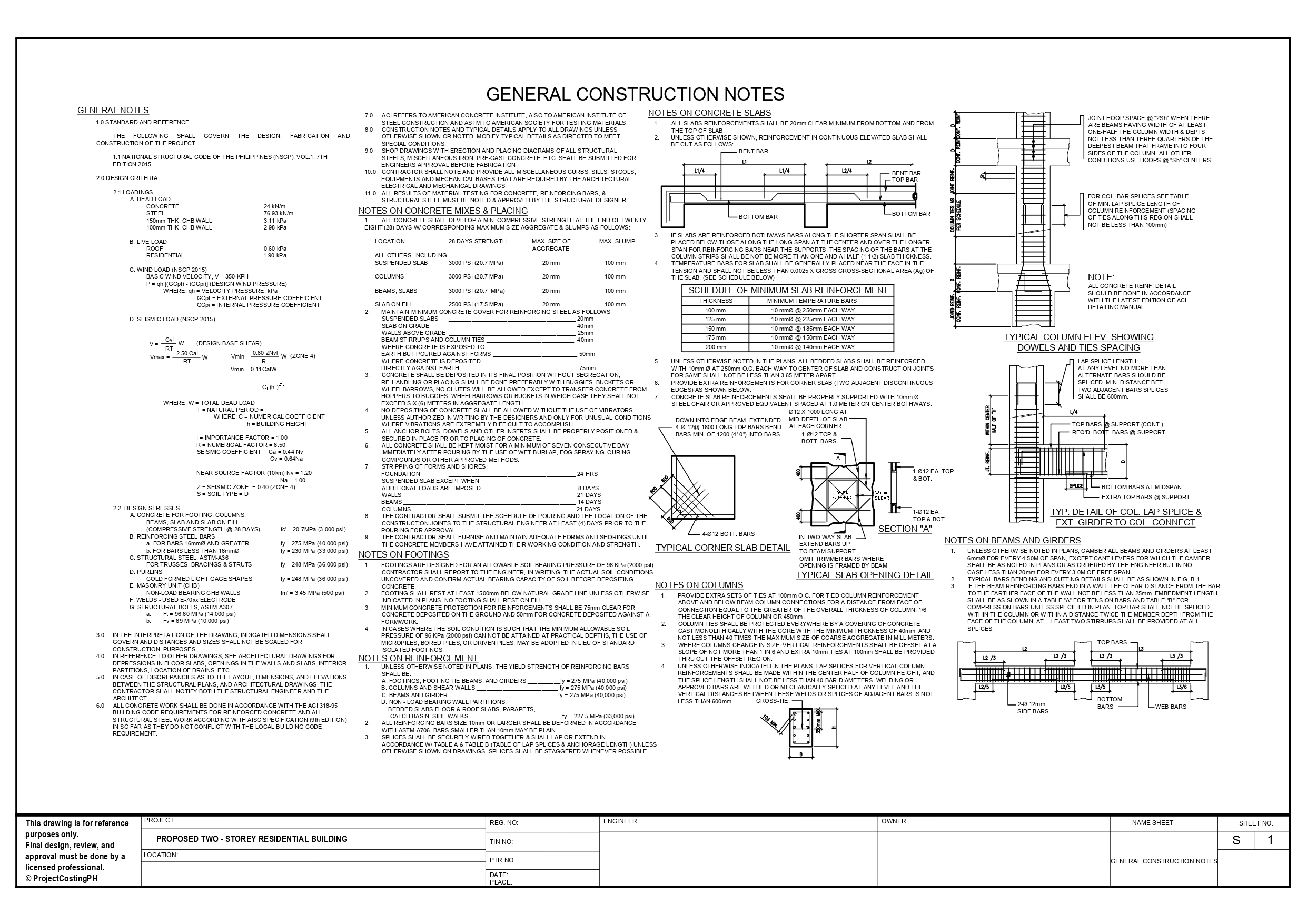

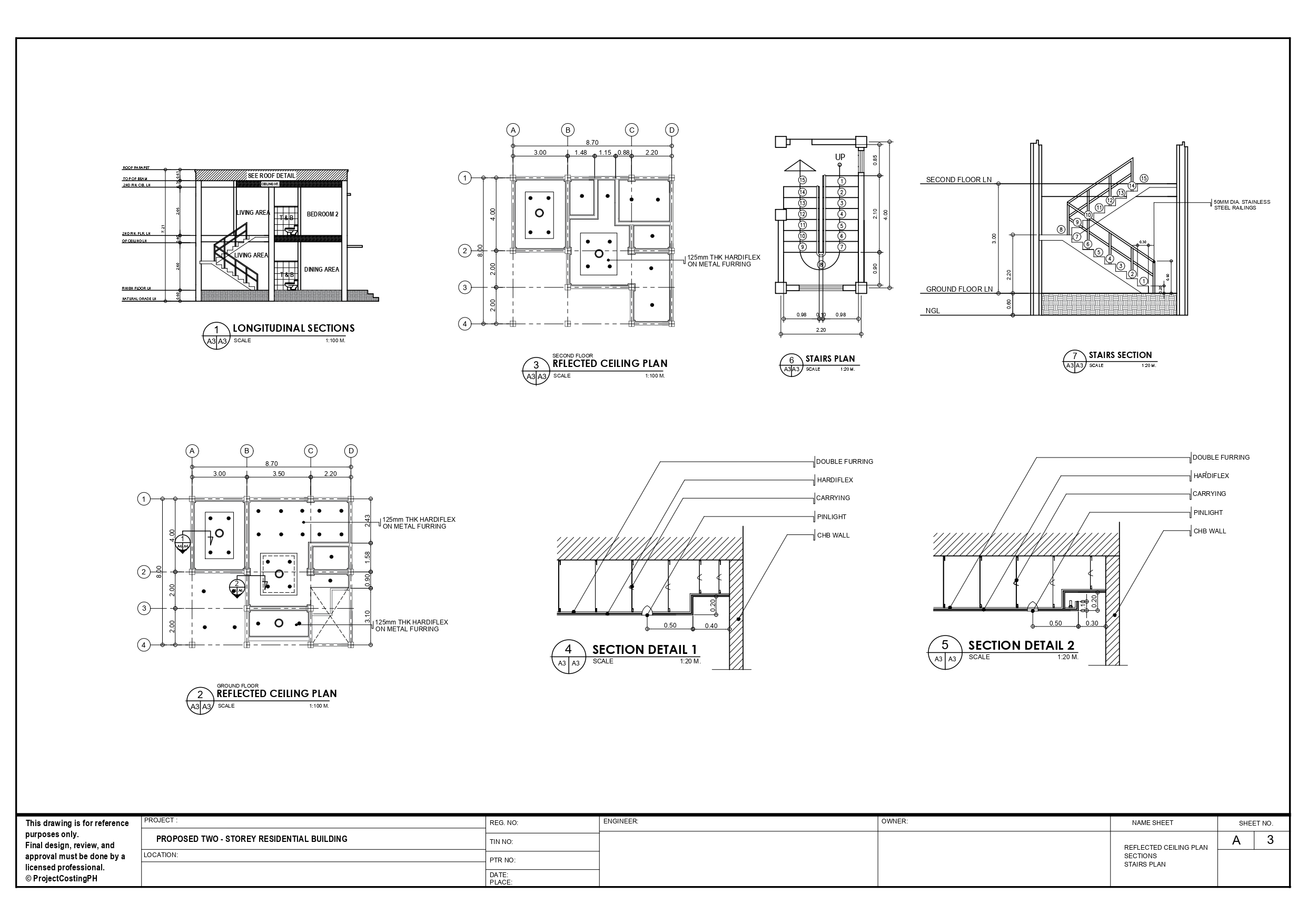

✔️ Architectural, Structural, Plumbing/Sanitary & Electrical Plan
✔️ Dimensioned plan for accurate estimating
✔️ Printable & downloadable format (PDF)

⚠️ Note: This plan is intended for reference, estimating, and planning purposes. Structural and architectural details should still be reviewed and finalized by a licensed professional before construction.
